60 GHz PtP link using 802.11ad with 5 GHz radio for backup.
Ideal for high-throughput connectivity with a range of up to 500 m.
UniFi Application Management
Pack of two radios
Package Contents:
UniFi Building-to-Building Bridge (x2)
Ball joint mount (x2)
Lock ring (x2)
Metal strap (x2)
Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
Power cord (x2)

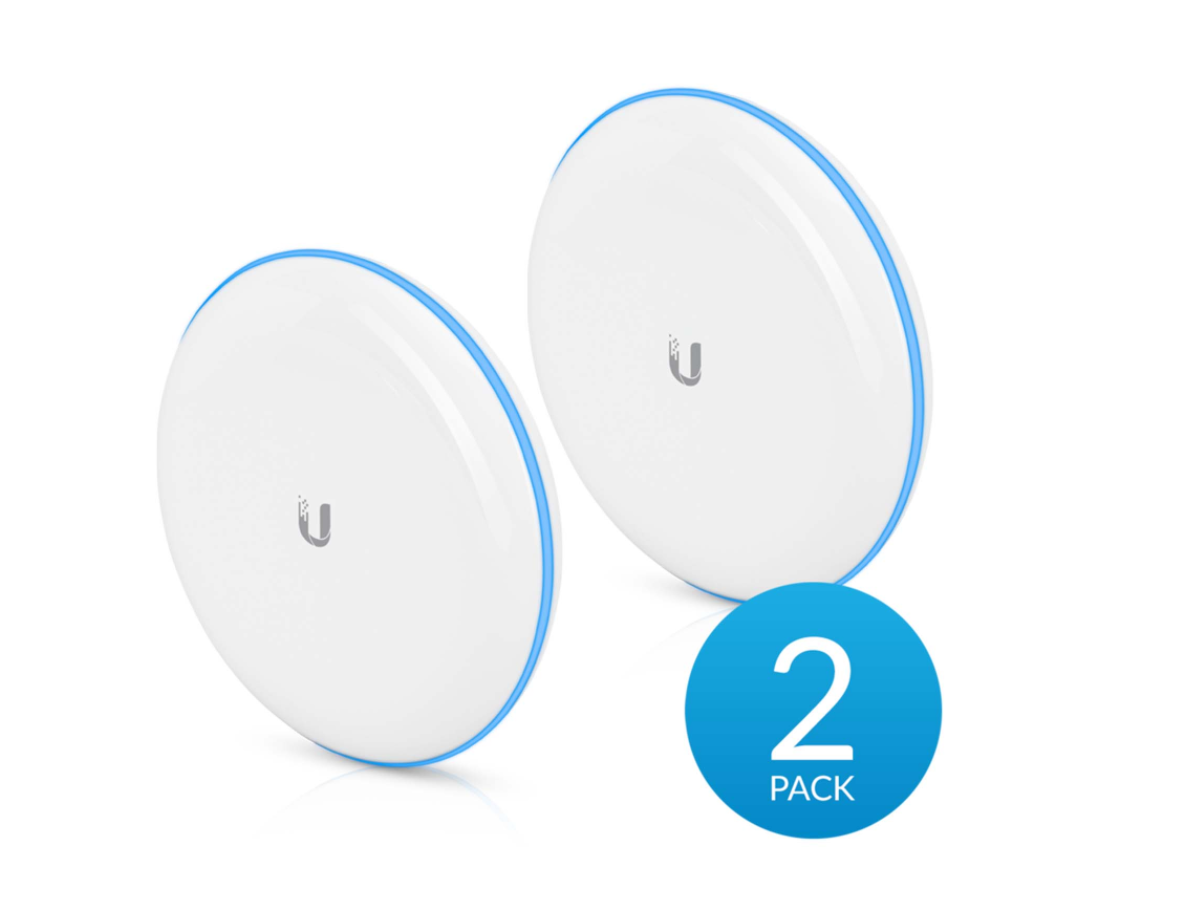

Ubiquiti UBB Building-to-Building Bridge (2-pack)
HK$4,699.00 Regular Price
HK$4,439.00Sale Price
Dimensions 140 x 140 x 90 mm Weight 376 g Antenna Gain 2.4 GHz (BLE): 2 dBi
5 GHz: 10 dBi
60 GHz: 17.2 dBi
GPS Yes Max. TX Power (EIRP) 5 GHz: 25 dBm
60 GHz: 32 - 36.5dBm
60 GHz Elevation Beamwidth 30° 60 GHz Azimuthal Coverage ±60° Interfaces Networking:
(1) 10/100/1000 Ethernet Port
Management:
Bluetooth
Enclosure UV-Resistant Polycarbonate Power Method 802.3af Supported
Passive PoE (48V)
Power Supply UniFi PoE Switch,
48V, 0.32A Gigabit PoE Adapter (Included)
Max Power Consumption 11W Wind Loading 56 N @ 200 km/h (12.6 lbf @ 125 mph) Wind Survivability 200 km/h (125 mph) Mounting Pole-Mount (Kit Included)
Wall-Mount (Not Included)
ESD/EMP Protection ± 24kV Contact/Air Operating Temperature -40 to 60° C (-40 to 140° F) Operating Humidity 5 to 95% Noncondensing Operating Frequency (GHz) Worldwide 5.150 - 5.875
57 - 66
Bluetooth (GHz) Worldwide 2.400 - 2.4835
